3.1. FlowTraq User Interface

The default FlowTraq user interface is browser based and can be accessed by any Internet enabled device with a web browser. By default FlowTraq can be accessed through the /flowtraq subdirectory on the server. For details on FlowTraq server installation, refer to the Installation Manual.

In FlowTraq the Workspace is your interactive analysis window into the traffic on your network. The Workspace features a powerful filtering interface that enables the analyst to select precisely the traffic of interest. Combined with hundreds of possible viewing combinations, the analyst can observe events on the network from any viewing angle, identifying patterns that remain hidden in traditional network analysis tools. By selecting objects the analyst can quickly pivot, zoom, and focus on suspicous activity, data breaches, and performance issues.

FlowTraq redefines traffic reporting by featuring a full-fidelity database that retains all flow records indefinately. This means you can generate any view of your network, using any arbitrary filter, for any desired timeframe, whenever you need. With FlowTraq it is not necessary to define today what you want to analyze tomorrow, as all reports can be generated on the fly, post-hoc. Since all workspaces are defined in the URL, you can save interesting views of your traffic by bookmarking the URL. Additionally, since each view is generated dynamically, FlowTraq offers arbitrary zoom-in capability with full precision at any timescale.

Figure 3.1. Example Workspace

Example Workspace

FlowTraq traffic navigation is defined by 3 key elements:

  1. A filter selecting what traffic is to be ranked. The filter may define exporters, address ranges, protocols, etc.

  2. A ranking view selects how traffic is to be ranked and displayed. Examples of rankings include top addresses by packet count, top exporters by update count, application by total connections, etc. Ranking by an item in an 'Any' filter will focus the view on the contents of that filter.

  3. A timeframe selects traffic in the time interval traffic is to be ranked. Timeframes can be specified in the absolute (date and time), or relative to now (last 3 hours).

Thanks to the full fidelity nature of the FlowTraq database every field of the session record can be filtered on. This includes derived fields such as country and autonomous system number, which are not found in the flow export records, and added by FlowTraq. Since FlowTraq re-assembles uni-directional flows back into bi-directional sessions, many filter options have both a client and a server side, such as ports, traffic groups, and byte/packet counts. FlowTraq also tracks the sender and receiver of data, in order to differentiate direction of data flow.

[Note]Note

The differentiation between clients, server, senders, and receivers can be subtle. As an example, when host A connects to host B and requests a download of data, then host A is the client and receiver, and host B is the server and sender. If host A connects to host B and initiates an upload of data to B, however, host A is still the client and B the server, but A is now the sender and B the receiver. In most connections each host will both send and receive some data; filtering on sender or receiver will focus on the data flow when returning results.

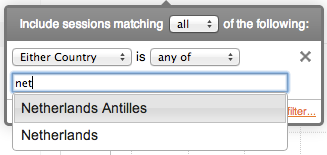

A filter selects which session records will be used to perform the ranking. This means that the filter is applied to each session record in the selected timeframe to decide if the record should be returned and included.

[Important]Important

Complex filters can be constructed by entering multiple values in a filter line, or by combining multiple filter lines:

When entering multiple values in a single filter line they are combined through a logical 'OR' operation, meaning they will use a match any approach.

Multiple filter lines can be combined through a match all (logical 'AND') or match any (logical 'OR') approach.

FlowTraq filtering supports definitions of CIDR (classless interdomain routing) blocks in both IPv4 (32-bit addresses) and IPv6 (128-bit addresses). By using the 'slash-size' subnet mask notation, addresses in the entire range are matched. When specifying multiple CIDR blocks, the comma acts as a logical 'OR' in a positive match:

SRVIP==10.1.0.0/16 || SRVIP==10.2.0.0/16

Selecting 'not in' transforms the meaning to a logical 'AND' and negates the match:

SRVIP!=10.1.0.0/16 && SRVIP!=10.2.0.0/16

FlowTraq supports matching specifically the 'client' or the 'server' side of a session for entities such as IP addresses, ports, autonomous systems, or interface index numbers. For example, this means the analyst can specifically choose to only select sessions where a particular address acts as a server (receiving the connection). When choosing 'either address', all sessions where either the server or the client address match the selected block will be included.

[Important]Important

When filtering on 'either' only matching entities are ranked.

Example: either ASN==32934 will only show FaceBook in the ASN-view, and FaceBook peers in the ASNPAIR-view.

When filtering on 'client' or 'server' side entities, all entities in the record are ranked.

Example: SRVIP==10.0.1.10 will only any IP that communicated with 10.0.1.10 (including the server itself) in an IP-view

There are many cases where the directionality of data flow is concern; questions of "who is sending data to my network" and "who outside my network is consuming my data" require knowing not only which host is initiating a connection but also which host is consuming data. Sometimes this can be discerned from protocol: the client initiates a connection and then always downloads data, or always uploads data. UDP streams, for example, are highly directional in this way, and identifying the client and server is sufficient to determine the flow of data. A filter on Server IP, then, identifies the consumer of NetFlow data.

However, many common protocols vary from session to session. SSH in particular can be either a pure upload, pure download, or an interactive session with meaningful data going both ways. Filtering on Sending IP identifies and then ranks sessions according to the data they transmit, regardless of whether that host (or VLAN, ASN, or Country) initiated the connection.

In combination with the INT filter element (marking all IP addresses that are internal to the partition), this type of filtering can be a fast and effective way to identify the top external consumers of your data.

[Important]Important

Remember that in most protocols, some data is sent each way: providing passwords before a download, for example, or a connection keep-alive. Very long downloads can result in the appearance of modest-sized uploads in the opposite direction. When investigating potential data exfiltration, always check the other half of the traffic to get a clear picture.

IP Address
Sending IP

Filter on hosts or CIDR blocks SENDING data, regardless of connection initiator. Changes view to order by data flow.

Receiving IP

Filter on hosts or CIDR blocks RECEIVING data, regardless of connection initiator. Changes view to order by data flow.

Client IP

Filter on hosts or CIDR blocks that INITIATE connections.

Server IP

Filter on hosts or CIDR blocks that ACCEPT connections.

Any IP

Filter on hosts or CIDR blocks listed in connections. View will only show hosts that match items in this filter.

Exporter
Exporter IP

The IP address of the exporting device (note that if your flows are being repeated by proxy or duplication software that this may be the address of the repeater)

Exporter Version

Numerical value of NetFlow version used (v5 is 5, v9 is 9, IPFIX is 10)

Sample Rate

Where applicable, show flows that are sampled at the given rate 1:RATE. (Non-sampled flows will appear for SAMPRATE==1)

Updates

Select sessions with the given number of updates. This is useful for gauging the effect of exporter parameter changes on FlowTraq load.

Interface Number
Sending Interface

Filter (and view) sessions according to the device interface(s) transmitting data.

Receiving Interface

Filter (and view) sessions according to the device interface(s) receiving data.

Interface In

Show sessions with the selected Ingress interface(s).

Interface Out

Show sessions with the selected Egress interface(s)

Any Interface

Show all sessions tagged with the selected interface (both Ingress and Egress) If viewing by interfaces, only show the selected interface(s).

Port
Sending Port

Filter on port(s) from which data is sent (similar to Sending IP)

Receiving Port

Filter on port(s) to which data is sent (similar to Receiving IP)

Client Port

Filter on client or source port (the port used by the initiator of the conversation)

Server Port

Filter on server or destination port (the port used by the contacted host; usually a standard port)

Any Port

Filter on any port listed. Does not affect view ranking.

Protocol
Protocol

IP protocol, numbered according to IANA definitions.

Application
Application

Application name, for those devices exporting application identification based on deep packet inspection (e.g. NBAR)

Country of Origin
Sending Country

Filter on identified country sending data (as determined by IANA IP space allocation)

Receiving Country

Filter on identified country receiving data.

Client Country

Filter on country of initiating IP address (as determined by IANA IP space allocation)

Server Country

Filter on country of server IP address (as determined by IANA IP space allocation)

Any Country

Filter on either country in communications.

Session Volume
Sent Bytes

Filter sessions according to bytes sent -- best match according to either client or server half of conversation; used in conjunction with "Sending IP" and "Sending Port" filters. (Note that there is no corresponding "Received Bytes") Includes greater than/less than and range operators.

Client Bytes

Filter sessions according to bytes sent by the Client (initiator). Includes greater than/less than and range operators.

Server Bytes

Filter sessions according to bytes sent by the Server (to the initiator). Includes greater than/less than operators.

Any Bytes

Filter sessions according to bytes sent -- best match according to either client or server half of conversation; ignores "Sending IP" and "Sending Port" filters. Includes greater than/less than and range operators.

Total Bytes

Filter sessions according to the total bytes sent by either host. Includes greater than/less than and range operators.

Sent Packets

Filter sessions according to number of packets sent -- best match according to either client or server half of conversation; used in conjunction with "Sending IP" and "Sending Port" filters. (Note that there is no corresponding "Received Packets") Includes greater than/less than and range operators.

Client Packets

Filter sessions according to number of packets sent by the Client (initiator). Includes greater than/less than and range operators.

Server Packets

Filter sessions according to packets sent by the Server (to the initiator). Includes greater than/less than operators.

Any Packets

Filter sessions according to packets sent by either host -- best match according to either client or server half of conversation; ignores "Sending IP" and "Sending Port" filters. Includes greater than/less than and range operators.

Total Packets

Filter sessions according to the total packets sent by either host. Includes greater than/less than and range operators.

TCP
TCP Flags

Filter according to TCP flag pattern (See 'Special Filters' section below)

IP
ToS/DiffServ

Filter according to the full DiffServ field, if present. If you desire to filter on QoS (the higher-order bits) remember to convert before searching. Includes greater than/less than and range operators.

Timing
Flow Duration

Filter according to session duration in seconds. Note that very long-running sessions or sessions with long intervals between packets may be split by the exporter or by FlowTraq in order to preserve performance.

MAC Address
Sending MAC

Filter on MAC address sending traffic, regardless of session initiator.

Receiving MAC

Filter on MAC address receiving traffic, regardless of session initiator. MAC addresses are not always available: some routers do not record this information, or substitute last hop and next hop for client and server. External MAC addresses are rarely available.

Client MAC

Filter on MAC address initiating the session.

Server MAC

Filter on MAC address of the destination host.

Any MAC

Filter on any sessions containing selected MAC address(es).

Traffic Group
Sending Traffic Group

Filter on traffic group sending data, regardless of session initiator. (See 'Special Filters' section below)

Receiving Traffic Group

Filter on traffic group(s) receiving data, regardless of session initator. (See 'Special Filters' section below)

Client Traffic Group

Filter on traffic group(s) initiating session. (See 'Special Filters' section below)

Server Traffic Group

Filter on destination traffic group(s). (See 'Special Filters' section below)

Any Traffic Group

Filter all sessions containing selected traffic group(s). (See 'Special Filters' section below)

VLAN Number
Sending VLAN

Filter on VLAN sending data, regardless of session initiator.

Receiving VLAN

Filter on VLAN receiving data, regardless of session initiator.

Client VLAN

Filter on VLAN initiating sessions.

Server VLAN

Filter on destination VLAN.

Any VLAN

Filter on sessions containing selected VLAN(s) as either source or destination.

AS Number
Sending AS

Filter on traffic sent by selected Autonomous Systems, identified by number.

Receiving AS

Filter on traffic received by selected Autonomous Systems, identified by number.

Client AS

Filter on source Autonomous System by number.

Server AS

Filter on destination Autonomous System by number.

Any AS

Filter on all traffic involving selected Autonomous System.

ASA Firewall Event
NSEL Event

Filter on events by ASA event ID. (1= Flow created, 2= Flow deleted, 3= Flow denied)

NSEL Ext. ID

Filter on ASA extended events, detailing reason for flow-denied events (1001-1004)

Partition
Partition

Select sessions by partition number. Note that only users in Partition 0 can see traffic from multiple partitions.

FlowTraq supports a system where the analyst can create arbitrary top-N rankings for any entity found in the session record. A view is created by selecting which entity (such as IP address, netblock, ASN, ...) should be ranked based on what quantity (packets, bytes, connections, ...). Some selections allow the analyst to specify whether only sent, or only received quantities should be included. This example shows a workspace with IP addresses ranked by bits sent. The graph displays the progression of bits sent over time by each of the top IP addresses by color code:

The first column of the table shows the top IP addresses with their reverse-resolved name (if available), and the autonomous system in which the IP address resides. The ranking was performed on bits sent by each IP address. The percentage column displays the contribution of each entity for the total selected traffic based on the filter and current timeframe. The additional columns are auxilary information and cannot be used for sorting.

FlowTraq re-assembles uni-directional flows into bi-directional sessions, allowing some entities to be grouped in a pair-wise fashion. IP addresses, interface index numbers, VLAN identifiers, autonomous systems, traffic groups, and MAC addresses can all be ranked in pairwise views. The example image below shows total packets sent between the various FlowTraq office locations and the outside world based on the defined traffic groups:

Ranking of entities can be further controlled to only include bits/bytes/packets/sessions sent, or received. By default both sent and received counts are added into the ranking. By selecting 'sent' or 'received' the analyst is able to control the behavior of the ranking to include include the selected count to or from each entity.

[Important]Important

Sent/Received differentiation is only available for entities that CAN be viewed in a pairwise fashion, although a pairwise view does not need to be selected. In other words, only entities that are present at each side of a communication (such as IP addresses, autonomous systems, traffic groups, ...) have a meaningful differentiation between bytes/bits/packets sent or received. When viewing accumulated TCP flags, for example, the directionality is meaninless as TCP flags are a property of the communication, and are not tied to either side of the communication.

FlowTraq offers a wide variety of primary rankings. Some of these are derived from multiple fields in the session record, others are derived from FlowTraq tagged fields:

In addition to regular quantity counts, FlowTraq is also capable of ranking by the unique occurences of other entities. These views only consider the number of uniquely different entities were observed, session and packet counts are therefore irrelevant. Examples:

Many different combinations are possible. Unique count views can quickly find scanning and reconnaissance behavior (IP by unique port), and worm spreading and SPAM behavior (IP by unique IP). Note that graphs will usually show an initial spike as the count is performed on first occurrence. This is normal and expected:

FlowTraq offers arbitrary time navigation beacuse data is never aggregated. A history of the most recently received records is kept in RAM for quick query processing. Historical queries are serviced from the disk database, and may take longer to complete.

The time navigation bar in the workspace allows for absolute time selection by selecting exact dates and times, as well as relative time selection where the analyst can choose to quickly view the last N minutes or hours. Click on either of the date/time fields to display a calendar widget to select a specific time and date for selecting the timeframe of your query:

Select a data and time using the calendar and the sliders, and click Done when finished:

Relative time selection offers the analyst the option to quickly select a timeframe in the recent past up to now. By default the workspace displays a 15 minute view of your network:

After selecting the desired timeframe through absolute or relative time the view can be refreshed by selecting the Apply button at the top right of the workspace.

The time navigation bar displays the timestamps enclosing the currently displayed data. On either side of these timestamps are buttons to quickly move to the previous, or next timesegment of the same length as currently displayed. These Forward/Backward buttons allow the analyst to quickly navigate through the data by viewing the previous or next timeslice with the same view and filter.

When navigating to a timeframe that includes the current time, or any future time, a crosshatch area will be drawn on the graph indicating the traffic records are yet to be received. The crosshatch area starts at approximately T-2 minutes, indicating that exporters may not yet have reported all traffic records for the most recent timeframe:

FlowTraq keeps a cache of the most recently received traffic records in RAM memory to facilitate rapid processing of queries in the most recent timeframes where analysts are most likely to be doing interactive work. For timeframes further back in history FlowTraq will query the disk database, which may take substantially longer than a RAM based query. The period for which RAM based queries can be performed is strongly dependent on the inflow rate of flow updates, and the amount of RAM dedicated to the FlowTraq system.

During query processing the icon below the process bar will indicate if the query is being serviced from RAM or from disk:

To analyze how much data is currently held in RAM and how resources are being used please refer to the administration page. The Performance widget displays the current RAM Cache fill (1% below) and the period for which queries can be serviced from RAM (3 days below):

The table in the workspace view will display the first 10 top items. Additional pages with further ranking are available by simply navigating to the next page with the buttons at the bottom right of each table. As the analyst moves through the various pages the graph will change to indicate which data the table is displaying. The workspace displays a top-N style ranking, so each additional data page will have a subsequently smaller contribution to the overall total.

The workspace offers a number of different interactive operations to the analyst, including tagging ranked items with userfriendly names, adding ranked items to the filter to quickly pivot the view, and a drag-to-zoom capability to further drill down on a timeframe.

For operator convenience FlowTraq enables the analyst to tag certain items in the ranked view table with userfriendly names. Click on the item and select 'Set Friendly Name' to set or change the display name of the item. Administrative users have the additional option to set the name for all the users. When this option is selected all users will see the name that the admnistrative user has assigned unless the user themselves have assigned their own friendly name to the same item. Primary ranked objects that may be tagged with a userfriendly name:

By default IP addresses and autonomous system names are reverse-resolved unless a friendly name was assigned. IP addresses are reverse resolved through DNS, while AS numbers are reverse resolved in the FlowTraq server.

Select 'Set Friendly Name' to set or change the display name of the item:

Using the same item menu it is possible to add objects to your current filter, and either focus on their traffic, or ignore it. Keep in mind that a 'match-all' filter combination should be used when working with an existing filter. In pairwise rankings it is possible add either side of the pairing to the filter.

Some items may offer additional filters. IP address items, for instance, will also offer the ability to filter on the autonomous system that the IP address resides in. Adding an exporter to a filter will create two filter boxes: one for the exporter IP, and one for the export protocol version.

In addition to friendly names and click-to-filter, users can add a variety of customized links to the table menu. Links appear according to the matched patterns in their URLs: a link that takes an IP address, for example, will only be listed in the context menus for IPs, IP pairs, service endpoints, etc. As an example, a menu item containing the link http://www.google.com/search?q=%IP% will appear in the menus for items containing IP addresses, and will fill in those addresses automatically.

To access the menu customization page, right-click on any object in the FlowTraq workspace table and select 'Customize this menu...'. At the top of the customization page is a button to Add Custom Menu Item

Menu items may contain the following shortcuts, which are used both to determine whether a URL is put in a given object's context menu, and are filled in to create the final URL.

%IP%

IP address, either IPv4 or IPv6

%PORT%

Port number

%ASN%

Autonomous system number

%TE%

Earliest time in window, in UNIX (seconds since epoch) format

%TL%

Latest time in window, in UNIX (seconds since epoch) format

All menus will match against the TE and TL shortcuts according to the currently-shown time window. Menu items are added on a per-user basis, meaning that each user configures their own menus.

When displaying a graph the analyst may select an area of data to zoom in on by dragging the cursor over a section of the graph. When the desired zoom area is selected, a magnifying glass icon will appear. Clicking the icon will re-run the current view and filter on the selected timeframe:

The filtering options produce a list of sessions that underlie the displayed graphs. These sessions can be viewed directly by selecting the sessions dropdown next to the Reload button and selecting View.

[Important]Important

Retrieving the session list is a separate query (in order to free up internal resources for other users, FlowTraq does not cache query results), and so changes to the filter or time frame will be reflected in the list of returned sessions, even if not yet applied to the current workspace.
